Ships Propeller Blade
3D laser scan of a 1 meter tall ships propeller blade, to enable manufacture of replacements.

Deliverables included:
  • Raw Scan Data in Point Cloud txt format
  • Deviation Analysis showing tolerences
  • 3D Polygon Mesh model in .OBJ format
  • 3D model in .STL format ready for CNC machining
  • 1:10 scale 3D printed scale model
Scanning completed using Faro Platinum Arm and LLP scanner

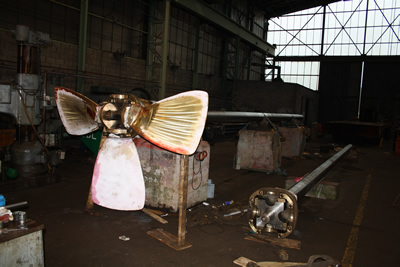

1m Propeller Blade 		Photo
Blade sprayed ready for laser scanning
Scan
6.7m point cloud scan 		Polygon Model
Polygon Mesh

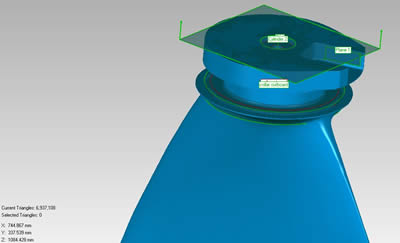

Detecting Features
Detecting Features 		Deviation Analysis
Deviation Analysis

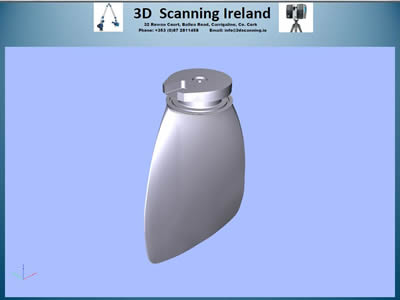

3D Model
3D Model 		3D Printed Model

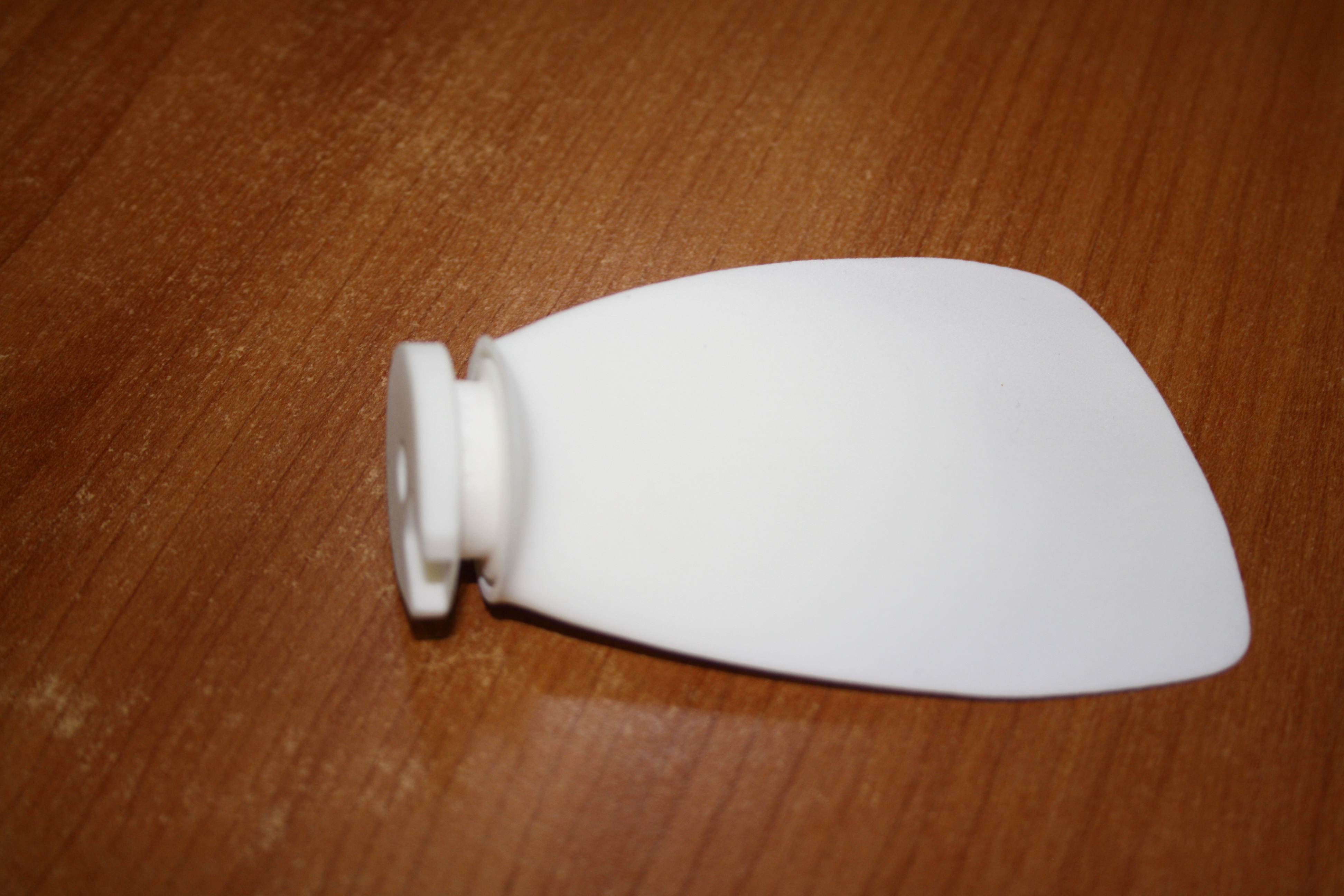

1:10 scale 3D Printed Model
